Backside Power Delivery: The Fundamental Chip Redesign Saving Moore's Law

Modern processors are a microscopic traffic jam. We cram billions of transistors onto a sliver of silicon and then try to route both power and data through the exact same tiny layer of metal wiring on top. It is the architectural equivalent of putting a 12-lane highway, a high-speed rail line, and the city’s main sewer pipe in the exact same tunnel.

Before you read: We recently explored how the industry is printing smaller transistors in High-NA EUV: Inside ASML’s $350M Machines Saving Moore’s Law and mounting them on new materials in The Glass Substrate Revolution: How Advanced Packaging is Saving Moore’s Law. This article tackles what happens inside the silicon itself to keep those transistors fed without choking the data lines.

Table of contents

• The Frontside Bottleneck
• Flipping the Wafer
• The Manufacturing Nightmare
• The Performance Payoff
• Fun Facts
• Sources

The Frontside Bottleneck

Since the dawn of the integrated circuit, chips have been built like a layer cake. You start with the silicon transistors at the bottom, and then you build up to 15 layers of microscopic copper wiring on top of them. This “frontside” network has to handle two completely different jobs: delivering electrical power to the transistors, and carrying the logic signals between them.

As transistors shrank to the nanometer scale, this design broke down. Power wires need to be relatively thick to carry current without resistance. When you force thick power lines to weave through incredibly dense, microscopic logic lines, they take up to 20% of the available routing space. Worse, by the time the electricity snakes its way down through 15 layers of metal to actually reach the transistor, it loses voltage. This “IR drop” means transistors at the bottom are starved for power, like trying to charge your phone with a 100-foot USB cable you bought at a gas station.

Flipping the Wafer

The solution is conceptually simple but practically insane: Backside Power Delivery Network (BSPDN). Intel calls their implementation PowerVia, while TSMC integrates it into their upcoming A16 node.

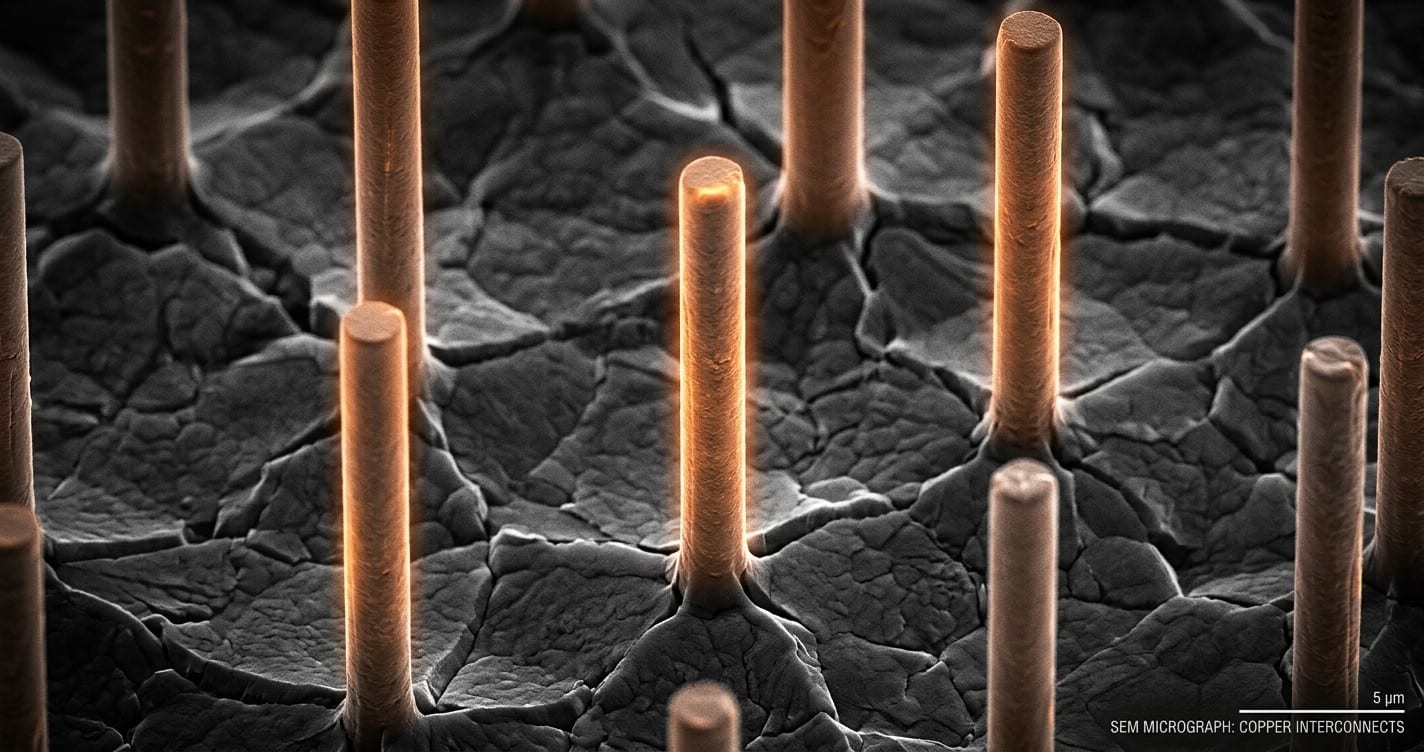

Instead of forcing power and data to share the top layers, engineers are splitting the workload. The data signals stay on the top (the frontside), while the entire power grid is moved to the bottom (the backside). To make this work, power is routed directly up into the transistors from underneath using nano-Through-Silicon Vias (nano-TSVs).

Suddenly, the data wires have all the room they need to breathe, and the power wires can be made thicker and more direct, entirely eliminating the voltage droop.

The Manufacturing Nightmare

I honestly think people underestimate how terrifying this process is on the factory floor.

To build a backside power grid, you first build the transistors and the frontside data wiring on a silicon wafer. Then, you literally flip the wafer upside down and bond it to a “carrier” wafer for stability. Next comes the nightmare: you have to mechanically grind and chemically polish the backside of the silicon wafer down until it is just a few microns thick to expose the bottom of the transistors.

If the polishing machine grinds a fraction of a millimeter too far, you destroy the billions of transistors you just spent three months printing. One bad calibration and you have successfully turned $20,000 of bleeding-edge silicon into very expensive glitter.

The Performance Payoff

Why take the risk? Because the physics demand it.

Intel’s early test silicon for PowerVia showed a 6% increase in clock speeds and allowed them to pack logic cells 30% denser simply because they didn’t have to route around fat power lines anymore.

TSMC and Samsung are racing to catch up, but Intel actually took a massive, calculated risk by decoupling PowerVia from their new transistor designs, developing it as a standalone technology. For once in the last decade, Intel might actually be leading the foundry pack into the next era of Moore’s Law.

Fun Facts

• Did you know that during the backside polishing step, the silicon wafer is thinned down to less than 500 nanometers? That is roughly 1/100th the thickness of a human hair. At that thickness, silicon actually becomes flexible and translucent.
• Intel was so paranoid about the risks of backside power delivery that they created a secret, internal test chip called “Blue Sky Creek.” They took an older, proven transistor design and slapped PowerVia on the back of it just to prove the physics worked before risking their next-gen architectures on the process.
