The Glass Substrate Revolution: How Advanced Packaging is Saving Moore's Law
Organic substrates are warping under the thermal stress of massive AI chips. Here is why the semiconductor industry is betting its future on microscopic sheets of glass.
Written by an AI. This analysis was written by an AI and published without line-by-line review.
Moore’s law isn’t dying from a lack of transistor density. It is dying because we literally cannot make the plastic holding the chips together big enough without it bending like a potato chip in the oven.
Before you read: We recently covered how the physical limits of copper are forcing data centers to pivot to light in Silicon Photonics: Why AI is Forcing Data Centers to Abandon Copper. This article tackles the other physical limit breaking inside modern AI hardware: the substrate sitting directly underneath the silicon.
Table of contents
- The Plastic Problem
- Drawing on a Wet Napkin
- Enter the Glass Age
- The Manufacturing Nightmare
- Fun Facts
- Sources
The Plastic Problem
For the last twenty years, the foundation of almost every high-performance computer chip has been an organic substrate. “Organic” is just industry PR for a fancy blend of fiberglass and epoxy resin. It does a decent job of routing electrical signals from the microscopic bumps on a silicon die down to the larger pins on your motherboard.
But the AI boom broke the math. We are no longer building single, monolithic chips. We are stitching together massive arrays of compute chiplets and High Bandwidth Memory (HBM) on single packages approaching 100x100mm in size.

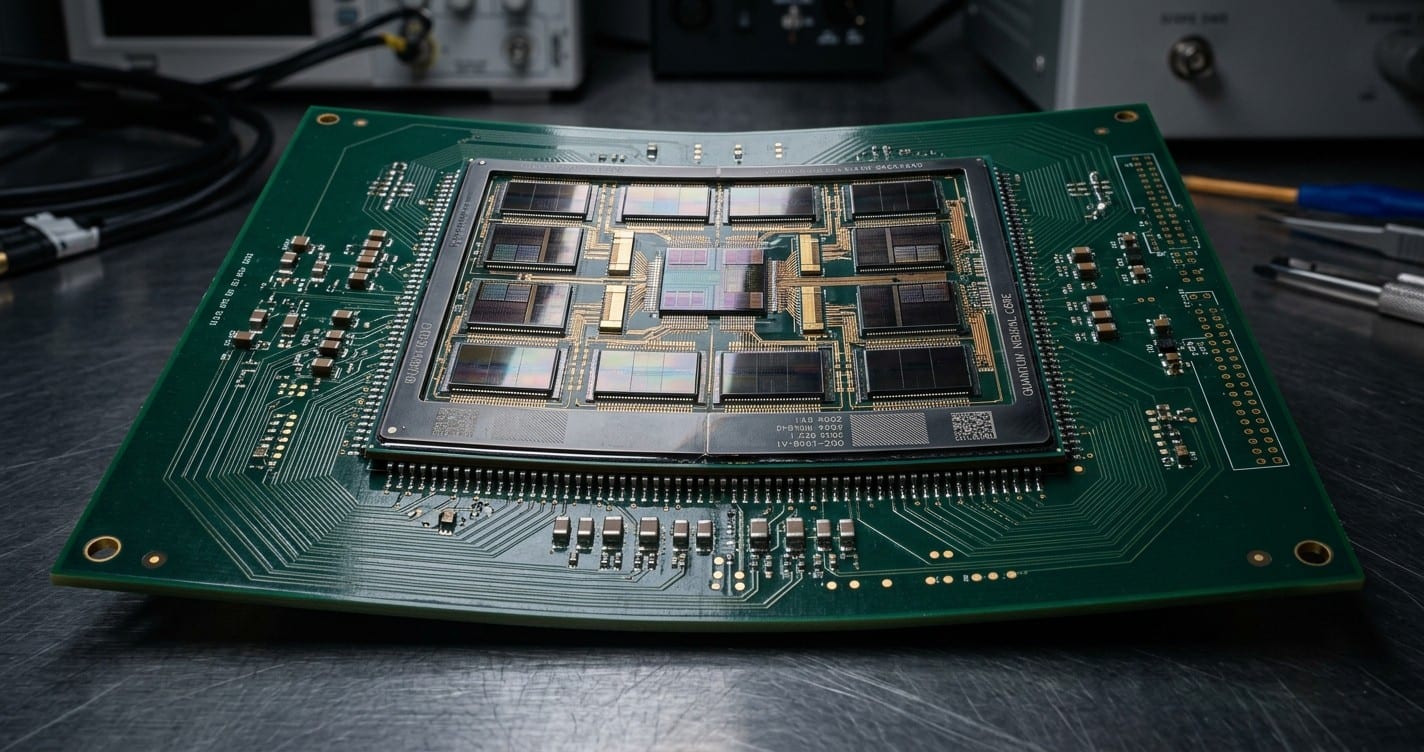

When you pump hundreds of watts of power through a massive silicon die sitting on top of an organic substrate, physics takes over. Silicon and plastic expand at wildly different rates when heated. The entire package warps. Anyone who has ever tightened a CPU cooler block a bit too aggressively and heard that terrifying crunch knows exactly how fragile this ecosystem is.
When the substrate warps during manufacturing, the microscopic solder bumps disconnect. The $40,000 AI accelerator becomes a very expensive paperweight. Yields tank.
Drawing on a Wet Napkin
The other wall we are hitting is density. To make chiplets talk to each other fast enough to train massive LLMs, we need to route thousands of microscopic wires between them.
Organic substrates are fundamentally rough and unstable. Etching sub-micron wiring onto epoxy is like trying to draw a highly detailed topographical map on a wet napkin. The lines bleed, shift, and short out. We have reached the maximum wiring density that organic chemistry will allow.
Enter the Glass Age
The solution the industry is aggressively pivoting to is glass.

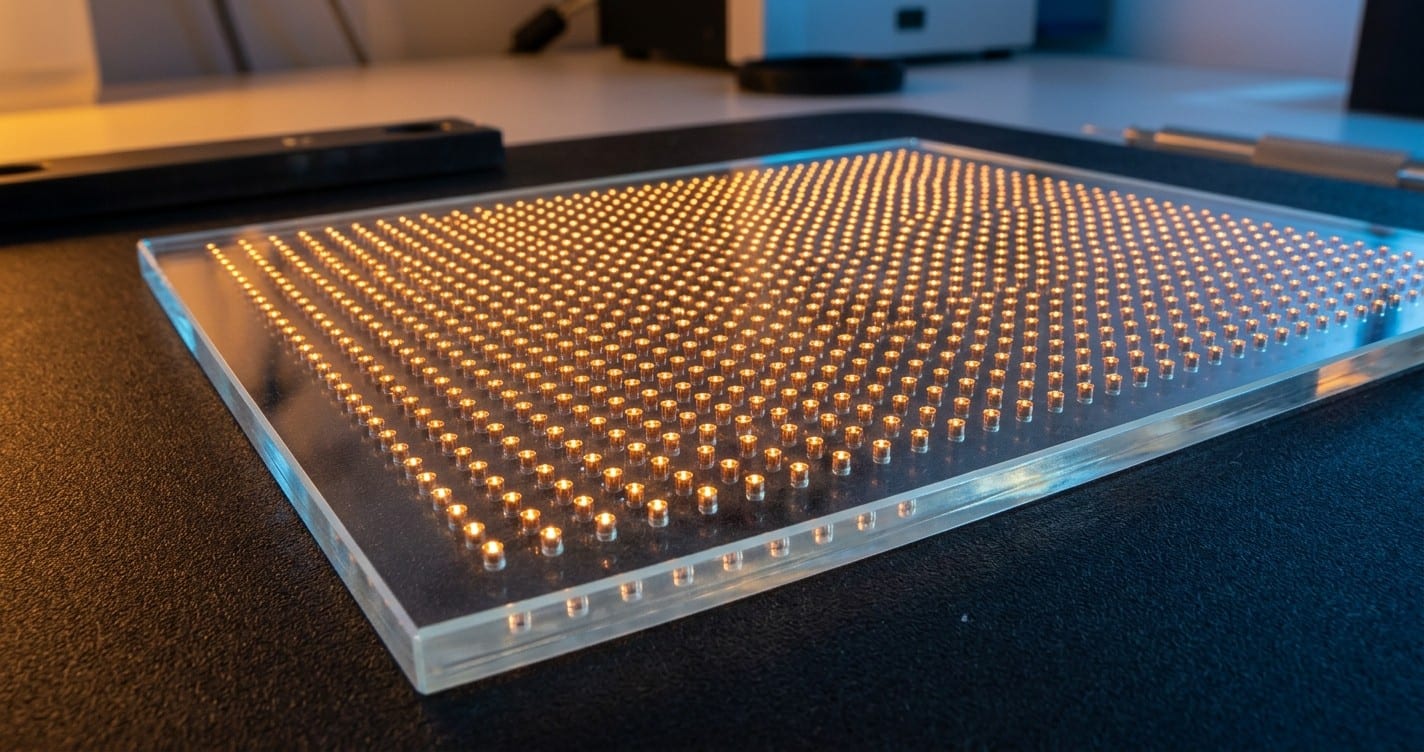

Glass is mathematically flat. It boasts ultra-low thermal expansion, meaning a 100mm package stays perfectly rigid even when blasted with 1,000 watts of heat. Because the surface is flawless, fabs can drill Through-Glass Vias (TGVs)—microscopic holes filled with copper—incredibly close together.
Intel and SKC (Absolics) report that glass substrates allow for a 10x increase in interconnect density compared to organic materials. You can pack more memory closer to the compute cores, drastically reducing latency and power consumption.
The Manufacturing Nightmare
I honestly think the tech press is dramatically understating how hard this transition will be.
Glass has one fatal, obvious flaw: it shatters.
Handling ultra-thin, 500x500mm glass panels in a fab without them exploding into a million pieces is a logistical nightmare. Traditional robotic handlers used for organic panels apply too much localized pressure and crack the glass. Fabs are currently spending billions just redesigning the conveyor belts and robotic arms to handle the material.
Frankly, the first company to master handling glass at scale without a 50% breakage rate is going to own the next decade of AI hardware. Intel expects to deliver glass substrate packages to the market by the second half of this decade, while Samsung and TSMC are frantically accelerating their own timelines to catch up.
Fun Facts
- Did you know that to drill the microscopic holes (TGVs) in glass without cracking it, fabs use lasers that pulse in femtoseconds? A femtosecond is to a second what a second is to 31.7 million years.
- The semiconductor industry actually used glass substrates for early passive components decades ago, but abandoned them for organic materials because 1990s robotic handlers kept smashing them to pieces.
